30 Haziran 2012 Cumartesi

Lamming Miniatures - review by John Cross

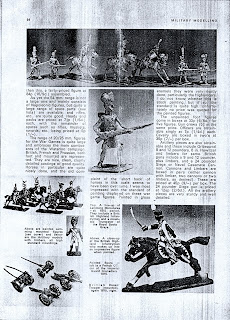

"A series of figures not too well known in the south of the country, although quite popular in the northern areas" - how John Cross starts his review of Lamming Miniatures in Military Modelling February 1971.

Sorry about the quality of these scans - I have had to work from a poor photocopy rather than an original. I hope they are still legible.

The review and two of the photographs were also reproduced on Vintage20mil, which still seems inaccesssible. If you follow this link using the wayback machine, choose Lamming and the Reviews, you should be able to see them there.



25 Haziran 2012 Pazartesi

Summary of the ROV1 project.



After this weekend of test diving I feel that i can conclude my first attempt to make a simple ROV.

Here is a summary of the process: (Links lead to blog posts/photos about each topic)




ROV1 homemade by DZL, from oz2cpu on Vimeo.

Future of the project:

After using several cameras it has become clear that a single fixed focus wide angle camera gives the best result. I plan to hack one of the popular GoPro cameras so it can be remote controlled and provide a live video feed.

The camera will be mounted on a pan/tilt unit inside the ROV for better coverage.

An IMU and pressure sensor will be installed for closed loop control and navigation.
Side thrusters may be installed for side to side control and drift compensation.

Many more posts will appear here over the summer as the project progresses.

Dive day, midsummer at Illutron

IMG_20120623_124326IMG_20120623_124308IMG_20120623_124344IMG_20120623_124338IMG_20120623_155253

Added a whole bunch of new stuff to the ROV: Switch mode power supply, remote controlled camera, landing gear and new firmware.
I realized that i needed some feed back from the ROV in terms of power levels and moisture levels so I added a LCD display to the control panel.
This display will eventually display data from several attached sensors.
Here is an underwater video from the dive, shot by Thomas Scherrer.

22 Haziran 2012 Cuma

Warrior ECW






This list comes from a May 1977 catalogue. I have the same list (minus the accessories) in a catalogie from May 1973.

These figures are not the same as the current Warrior range.

It is interesting (to me at any rate) that the officer shown in the Whitecoat unit in this previous post is EC29, General with Map, Pointing

18 Haziran 2012 Pazartesi

Discovery: Les Higgins Subscription Figures



In an earlier post I mentioned the earlier Les Higgins ECW figures which were available on subscription. From Richard via John C of 20mm Nostalgic Reveival I have received this image of a letter from Les Higgins which accompanied the fulfiilment of an order for these figures. It may not be a complete list (the order may not have included examples of all the figures available) but it is the first time I have seen anything approaching a list for these figures, so I thought it would be useful to post it here and also on Vintage Wargaming.

In case the photo is hard to decipher (it is not a scan) here is the list:

English Civil War

Royalist

King Charles I with cloak
Royalist fencing (with cloak)
Royalist fencing
Cavalier standing
Cavalier for horse

Parliamentarian

Oliver Cromwell
Walking Roundhead
Roundhead fencing in low position
Roundhead fencing standing

Universal figures

Running musketeer
Musketeer shooting
Officer doffing hat
Pikeman standing
Pikeman receiving
Pikeman at push
Musketeer, gun on shoulder
Running figure
Trooper for horse

Other Periods

Guthram 878 AD with cloak
Grenadier 1742
Queens Cameron Highlander


Guthrum was a Dane who first defeated and then surrendered to King Alferd at the Battle of Chippenham in 878 AD. This figure is almost certainly the one posted last week by Harry P here on his Parum Pugna blog.

16 Haziran 2012 Cumartesi

ROV testing at Illutron

IMG_20120614_181611IMG_20120614_181601IMG_20120614_181557IMG_20120614_182514

ROV testing at Illutron, a set on Flickr.
Today the ROV1 got the first live test dives in the water at Illutron.
Right from the start everything worked great.

ROV1 tank test

Tested the ROV1 in a glass tank at Illutron. All went well and everything worked right away. The controls are accurate and all seals are good.
Short video of tank test
Less crappy videos:
Tank
Sail off 1
Sail off 2

12 Haziran 2012 Salı

ROV1 ready for 1. test.

IMG_20120612_212543IMG_20120612_212710IMG_20120612_221045IMG_20120612_221019IMG_20120613_002315IMG_20120612_212602
IMG_20120613_002240

ROV1 ready for 1. test., a set on Flickr.
Did final assembly of the ROV1 and control box.
Installed micro controller and leakage detector.
ROV1 is connected to the control box on the surface via a single CAT5 cable. This cable carries high voltage power (240V), bi-directional data and video.
A test camera and rudimentary LED lighting is installed for the first tests.
All wiring is implemented in a way so that any short between the high voltage and other wires will immediately trigger a safety relay.

11 Haziran 2012 Pazartesi

The Scream Detector and digital photo frame

We were invited to participate in a gallery opening in Sweden. The theme was a 20 by 20 cm canvas interpretation of Edvard Munchs "The Scream".
I hacked a digital photo frame I found. Put a picture of The Scream on it and mounted the screen and electronics in a 20 by 20 cm. frame.
I located the wires for the backlight of the LCD and put a FET on it.
I used the song detector project as the basis to make a scream detector that in term controlled the backlight via the FET.
This way you have to scream to see the scream...

Energy harvester/perpetual sensor

Energy harvesterEnergy harvesterEnergy harvesterEnergy harvesterEnergy harvesterEnergy harvester
Energy harvesterIMG_20120611_180752IMG_20120611_180623IMG_20120611_180636

Some time ago I was presented with the challenge to make a device that would collect information such as temperature, light, radiation and similar without ever being serviced or recharged. The device could possibly even be integrated into a wall or a rock for all eternity.
I started experimenting with running micro controllers in really low power configurations and developing algorithms for extreme power consumption.
The images above show a couple of these devices. They are all powered from a single 2.5V/100µA solar cell and use super-capacitors for power storage.
One have a simple LCD that displays the power stats for the device. This allowed me to get an idea of what kind of power an computation power was available.
The others uses a power booster circuit to blink a white LED that need higher voltage than 2.5V.
The LED blinks once per second. The duration of the blink is determined by the amount of stored energy allowing the blinking to go on during low energy times. Once per hour, if the stored power allows for it, the blink is modulated in a way that allows collected data to be transmitted to an external device. The average current drawn by these devices is around 6.2µA with a bus voltage of about 2.5V.
During energy starvation the bus voltage may drop as low as 1.3V. If this happen the firmware will put the device into 8 second inactivity cycles until better times.

ECW Unit

Completed a couple of weeks ago but only just photographed now, this unit is made up of pikemen and officer which I am sure are Warrior, together with musketeers who are more of a mystery.



Looking at these together with the other Whitecoat regiment I posted previously, it looks like the musketeers would do better being swapped, as I am sure the previous lot's musketeers are also Warrior, while the new unit's musketeers' bases look very similar to the more sketchy pikemen of the first unit.

I've tried them in a couple of different configurations - I don't now if anyone would like to say which they feel sit better together, or perhaps even could identify the manufacturer(s) of the mystery pikemen and musketeers.

Here are the (presumed) Warrior figures together



Here are the mystery figures together



Sealing ROV1

IMG_20120611_135035IMG_20120611_132539IMG_20120611_155903IMG_20120611_155754IMG_20120611_155611IMG_20120611_155600
IMG_20120611_142825IMG_20120611_142702IMG_20120611_142150IMG_20120611_141004IMG_20120611_140853IMG_20120611_135736
IMG_20120611_135646IMG_20120611_135642IMG_20120611_135109

Sealing ROV1, a set on Flickr.
After initial tests of the ROV1 it became clear that it was really leaking.
I has used cheap foam gaskets for attaching the windows and no seal at all around the bushings for the motor and surface cables.
Christian of Illutron gave me some soft 3mm. vinyl sheet. This stuff seem ideal except it's really nasty to laser cut.
Adding an extra O-ring seal ensures that all packing surfaces are facory finished.
After testing with a vacuum pump I am now much more confident that this little ROV will stay dry inside.
